vimsteel product 4140

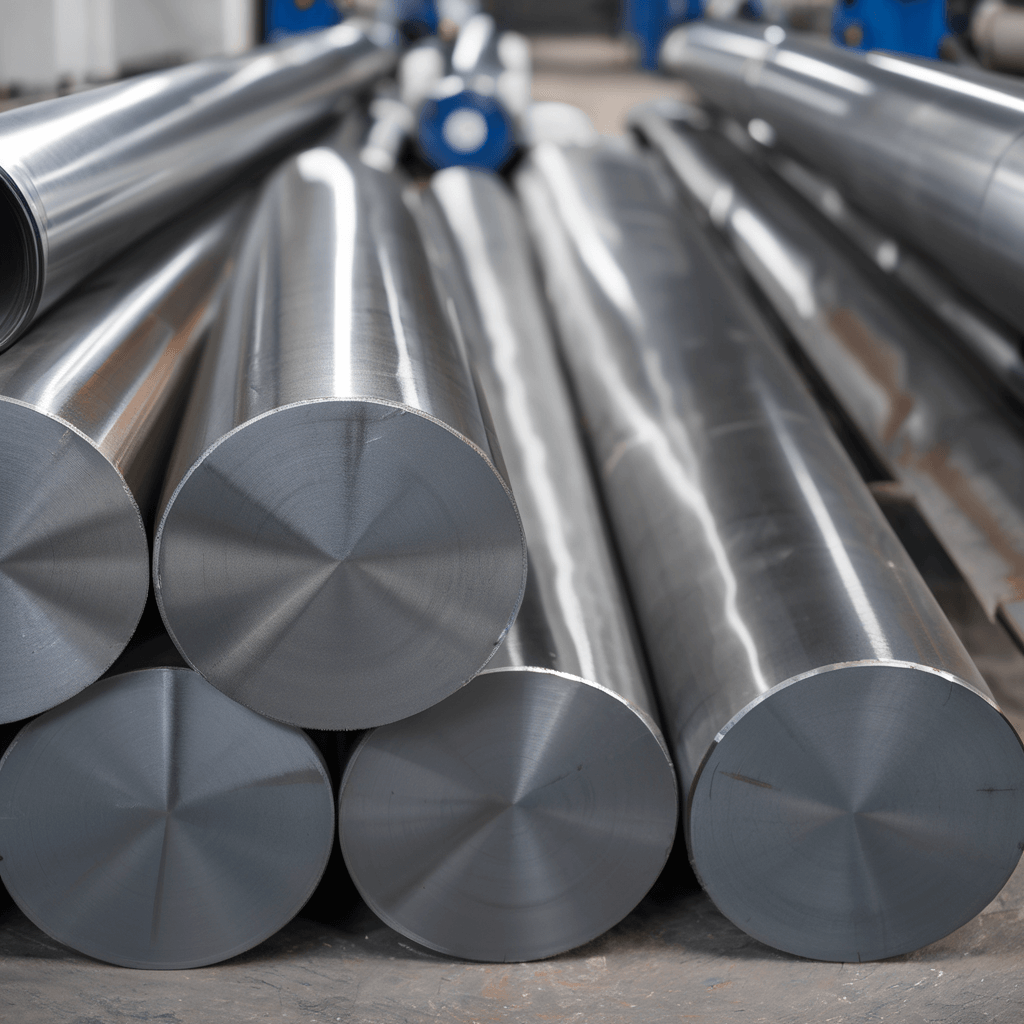

4140 steel | 42CrMo4 steel plate | EN19 steel Round Bar | SCM440 steel

ASTM 4140 alloy steel is a chromium-, molybdenum-, and manganese-containing low alloy steel. It has high fatigue strength, abrasion and impact resistance, toughness, and torsional strength. The following datasheet gives an overview of ASTM 4140 alloy steel.

Designation by Standards

Chemical Composition (%)

Mechanical Properties

Typical Mechanical Properties - Hot Rolled Condition

Heat Treatment

ASTM 4140 alloy steel is heated at 842°C followed by quenching in oil. Before hardening, it can be normalized by heating it at 914°C for a long period of time, followed by air cooling.

Forging

ASTM 4140 alloy steel is forged at 925 to 1205°C

Hot Working

ASTM 4140 alloy steel can be hot worked at 818 to 1037°C

Cold Working

ASTM 4140 alloy steel can be cold worked using conventional methods in the annealed condition.

Annealing

ASTM 4140 alloy steel is annealed at 871°C followed by slowly cooling in the furnace.

Tempering

ASTM 4140 alloy steel can be tempered at 205 to 650°C depending upon the desired hardness level. The hardness of the steel can be increased if it has a lower tempering temperature. For example, a tensile strength of 225 ksi can be achieved by tempering at 317°C, and tensile strength of 130 ksi can be achieved by tempering at 539°C.

Hardening

ASTM 4140 alloy steel can be hardened by cold working, or heating and quenching.
